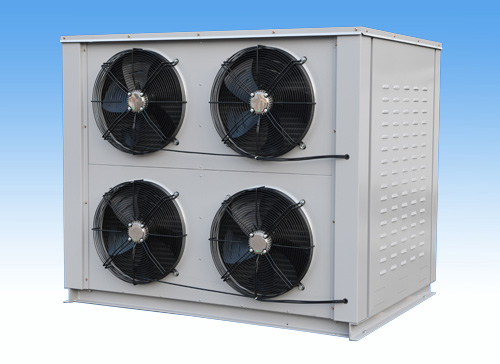

Refrigeration products FNV air-cooled condenser

Product use

FN series air-cooled condenser is a kind of special in the open air, semi-closed and totally enclosed compressor condenser. Heat dissipation area by 2, 1380 m2. FN type air cooling condenser FNH and FNV two series. FNH with horizontal air supply type, FNV for vertical air supply type; FNH model suitable for small and medium-sized close partly or fully enclosed compressor, FNV type is suitable for large amount of cold compressor. Condenser separately installed on the outside, and the compressor piping connections between in lieu of water cooled condenser.

Product performance parameters


Model		 In the name of
Heat released
Capacity
15KTD		 Heat transfer
area
Surface		 Fan parameters 3-380V
Fans Data
Connection
Dimensions		 The weight
of the
N.W
The diameter of
Diameter
Single Power
Airflow
Noise
Inlet
Outlet		 L B H
kW m2 mm W m3/h dB(A) mm(ø) mm(ø) mm mm mm kg
FNV-40.4/105 40.4 105 1×600 550 10000 68 22 19 1090 940 980 110
FNV-80.9/210 80.9 210 2×600 550 20000 70 25 22 1890 940 980 210
FNV-121.3/320 121.3 320 3×600 550 30000 71 28 22 2690 940 980 330
FNV-161.7/420 161.7 420 4×600 550 40000 71 38 28 3490 940 980 450
FNV-202.1/530 202.1 530 5×600 550 50000 72 50 38 4330 940 980 580
FNV-242.6/630 242.6 630 6×600 550 60000 73 50 38 5130 940 980 700
FNV-63.5/165 63.5 165 1×700 750 16000 73 25 22 1290 1170 1210 160
FNV-127.1/330 127.1 330 2×700 750 32000 74 28 22 2290 1170 1210 310
FNV-190.6/500 190.6 500 3×700 750 48000 75 50 38 3290 1170 1210 470
FNV-254.1/660 254.1 660 4×700 750 64000 76 50 38 4320 1170 1210 640
FNV-317.6/830 317.6 830 5×700 750 80000 77 60 42 5320 1170 1210 820
FNV-381.2/990 381.2 990 6×700 750 96000 78 60 42 6320 1170 1210 980
FNV-88.6/230 88.6 230 1×800 1500 26000 79 28 22 1450 1340 1490 230
FNV-177.1/460 177.1 460 2×800 1500 52000 80 38 28 2610 1340 1490 450
FNV-265.7/690 265.7 690 3×800 1500 78000 81 50 38 3770 1340 1490 690
FNV-354.2/920 354.2 920 4×800 1500 104000 82 60 42 4960 1340 1490 930
FNV-442.8/1150 442.8 1150 5×800 1500 130000 83 60 42 6120 1340 1490 1150
FNV-531.3/1380 531.3 1380 6×800 1500 156000 85 60 42 7280 1340 1490 1400
