制冷产品 FNU系列冷凝器

产品用途

FNU系列冷凝器是一款可适用于开启式、半封闭式和全封闭式压缩配套的箱型冷凝器。可搭配5HP至30HP不同功率的压缩机使用。结构紧凑，噪音低，安装方便，换热效果好。广泛运用于农业、食品、餐饮饭店、化工等等各个行业。

产品性能参数

型号 Unit model	冷凝温度℃ condensing temperature		制冷量Qo [W] refrigeration capacity 功率消耗Pe [kW]power of working 蒸发温度 ℃ evaporating temperature
型号 Unit model	冷凝温度℃ condensing temperature		-15	-20	-25	-30	-35
FNU-55	30	Qo	12540	10300	8110	6260	4690
	30	Pe	4.21	3.93	3.62	3.27	2.91
	40	Qo	10800	8830	6880	5220	3820
	40	Pe	4.7	4.35	3.92	3.49	3.05
	50	Qo	9020	7280	5570	4120	2920
	50	Pe	5.09	4.67	4.23	3.82	3.39
FNU-70	30	Qo	18530	14640	11330	8700	6330
	30	Pe	6.37	5.89	5.31	0.7	3.98
	40	Qo	16490	12870	9890	7330	5160
	40	Pe	6.97	6.32	5.56	4.8	4.01
	50	Qo	14140	10960	8300	6050	4160
	50	Pe	7.42	6.56	5.71	4.87	4.03
FNU-80	30	Qo	22515	17993	14117	10764	7970
	30	Pe	7.49	6.68	6.14	5.46	4.7
	40	Qo	19665	15571	12075	9025	6508
	40	Pe	8.25	7.42	6.56	5.68	4.83
	50	Qo	16815	13110	9985	7315	5063
	50	Pe	8.93	7.95	6.91	5.89	4.93
FNU-100	30	Qo	26650	21250	16680	12700	9310
	30	Pe	8.84	7.99	7.02	6.23	5.38
	40	Qo	23950	18990	14590	10880	7730
	40	Pe	9.76	8.66	7.6	6.56	5.55
	50	Qo	20950	16500	12570	9210	6380
	50	Pe	10.74	9.39	8.1	6.88	5.72
FNU-120	30	Qo	34850	27700	21600	16430	12050
	30	Pe	11.01	9.97	8.82	8.21	7.16
	40	Qo	31000	24450	18700	13910	9860
	40	Pe	12.54	11.18	10.01	8.67	7.29
	50	Qo	27300	21100	15970	11640	8030
	50	Pe	14.13	12.45	10.82	9.19	7.53
FNU-140	30	Qo	40000	31850	24900	19000	13980
	30	Pe	15.61	11.5	10.29	9.63	8.41
	40	Qo	35650	28200	21650	16140	11490
	40	Pe	14.63	13.07	11.89	10.34	8.73
	50	Qo	31500	24450	18650	13560	9370
	50	Pe	16.58	14.88	13.1	11.21	9.21
FNU-170	30	Qo	52300	41600	32450	24650	18090
	30	Pe	16.52	14.96	13.23	12.32	10.74
	40	Qo	46550	36700	28100	20900	14810
	40	Pe	18.83	16.79	15.03	13.01	10.94
	50	Qo	40950	31700	24000	17480	12050
	50	Pe	21.2	18.7	16.25	13.8	11.3
FNU-190	30	Qo	60000	47800	37350	28500	21000
	30	Pe	18.92	17.25	15.44	14.45	12.61
	40	Qo	53500	42300	32500	24200	17240
	40	Pe	22	19.61	17.85	15.52	13.09
	50	Qo	47250	36700	27850	20350	14070
	50	Pe	24.9	22.3	19.66	16.82	13.82

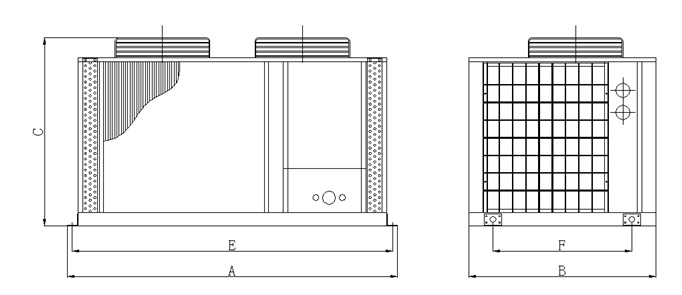

安装及外形尺寸

机组型号 Unit model	HP	电机功率 Motors		贮液器容积 Receiver volume	外形尺寸 Overall size (mm)			安装尺寸(mm) Installation size		连接管 connecting line（mm）
		电机功率 Motors			A	B	C	E	F	吸气 Suction pipe	供液 Liquid supply pipe
		直径 φmm	数量		A	B	C	E	F	吸气 Suction pipe	供液 Liquid supply pipe
		直径 φmm	数量	L	mm	mm	mm	mm	mm	φmm	φmm
FNU-55	5	550	1	8	1116	780	855	1074	560	28	12
FNU-70	8	400	2	12	1250	850	865	1208	630	35	16
FNU-80	10	450	2	14	1500	850	865	1458	630	35	16
FNU-100	12	6D500	2	18	1500	850	865	1458	630	35	16
FNU-120	15	500	2	22	1600	1000	905	1558	780	42	19
FNU-140	20	500	2	30	1600	1000	1005	1558	780	42	19
FNU-170	25	550	2	38	1760	1000	1105	1718	780	50	19
FNU-190	30	600	2	45	1760	1170	1105	1718	950	50	22
